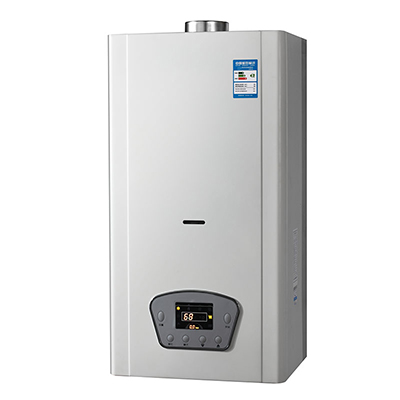

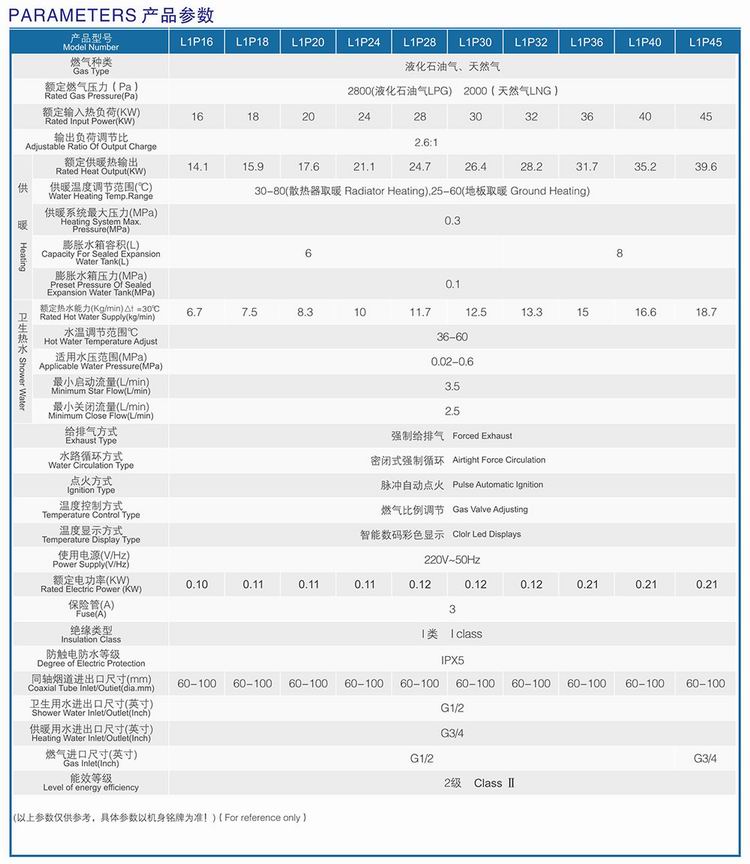

Product model:L1P**-V01
Satisfactory power:20kw/24kw/28kw
Product features:

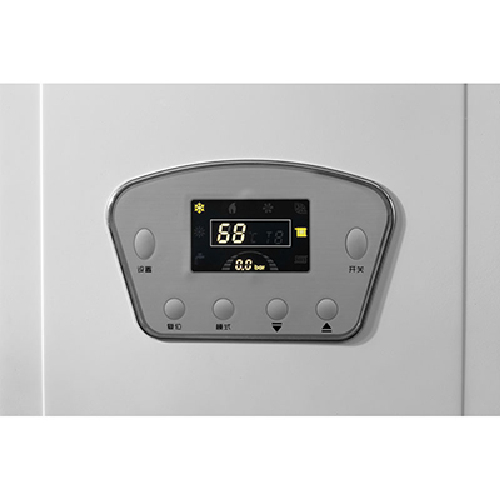

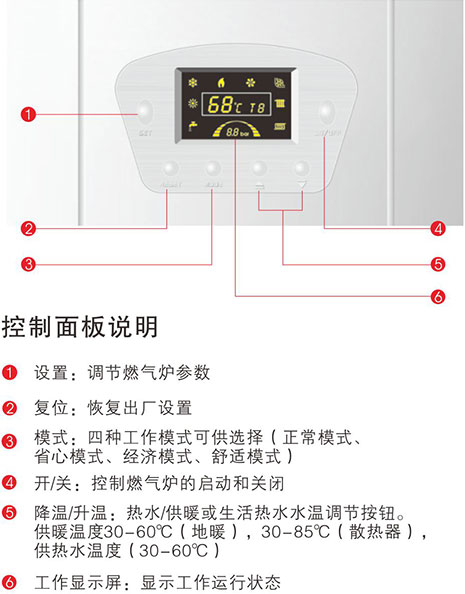

＆#8226; The large screen LED display regularly displays the operation state of the wall hanging furnace, so that the operation state of the wall hanging furnace is clear at a glance.
＆#8226; Low perindole sound operation, fast installation, easy operation;
＆#8226; Eight time temperature setting mode, operation is simpler.
＆#8226; The imported electronic pressure sensor is used to automatically shut down the system when the water pressure is too low or too low, so as to effectively protect the safe operation of the machine.
＆#8226; With floor heating / heat sink heating mode, it is free to choose.
＆#8226; Energy saving, unique high efficiency heat exchanger and combustion system, the thermal efficiency of up to 90.2%.

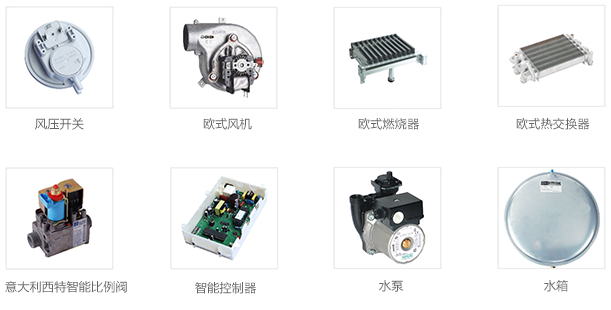

1、Burner:
The burner is the energy conversion part of the household gas wall hanging furnace. The head adopts the harmonica type structure, so that the gas can be evenly sprayed out on the plane of the burner, and the ignition and combustion will form a uniform temperature field. The burner head is made of stainless steel material, which can prolong the service life of the burner to a large extent.

2、Gas proportional valve:
The Italy SIT proportional valve originally imported by the company will convert the electrical signals detected by the automatic control components into the mechanical action used to adjust the size of the gas valve through the circuit board, and convert the safety signals detected by the safety components into the mechanical opening action. The unit integrates electricity, gas and machinery into one of the most complex parts of household gas wall hanging furnace.

3、Fan
The effect of the fan is to force the flue gas to discharge the furnace body at a certain velocity, and at the same time, make the stable pressure difference between the combustion chamber and the outside, and ensure that a proper amount of fresh air is mixed into the combustion chamber and the nozzle ejected by the nozzle to a certain proportion, so as to achieve the best excess air coefficient, so that the gas can be completely burned.

4、Expansion tank
It is used for accommodating the volume of water coming out of the heating system after the expansion of water, and at the same time, stabilizing the circulation pressure of the system and alleviating the change of the water pressure of the medium. The rubber bladder inside the expansion tank is filled with nitrogen of 1 bar. When the water volume expansion of the system is increased, the nitrogen is squeezed into the water tank, and the pressure of nitrogen is pressed back to the heating system when the volume shrinkage of the system is reduced.

5、Water pump
Its function is to realize the circulation of water in the system. The domestic gas wall hung stove has very high stability, reliability and noise requirements for its work. The household gas wall hanging furnace produced by the household uses the imported German willle imported pump with good quality and good performance. It can withstand the high temperature of 1200C, and the design life is more than ten thousand hours.

6、Main heat exchanger:
It is composed of coil, fin and assembly board. The material is oxygen free copper (dephosphorization deester). The fin absorbs heat and transfers heat to the coil (copper tube), and then flows through the water in the coil to bring heat out. It is used to heat the gas generated by burning the gas on the wall hanging furnace to feed water.

7、air flow switch
Using the original Swiss imported HUBA wind pressure switch, it mainly detects the wind pressure produced by the fan, ensures the wind, smoother smoother, control the heating furnace closed, and plays the role of safety and protection.

8、Controller
The production of intelligent controller, digital control system operation, heating, domestic hot water temperature adjustment, automatic adjustment of gas volume, energy saving and safety.
